The MSL-50
MSL-50 Solar Light

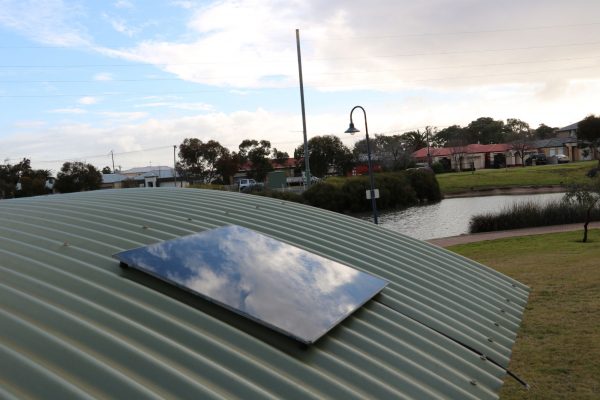

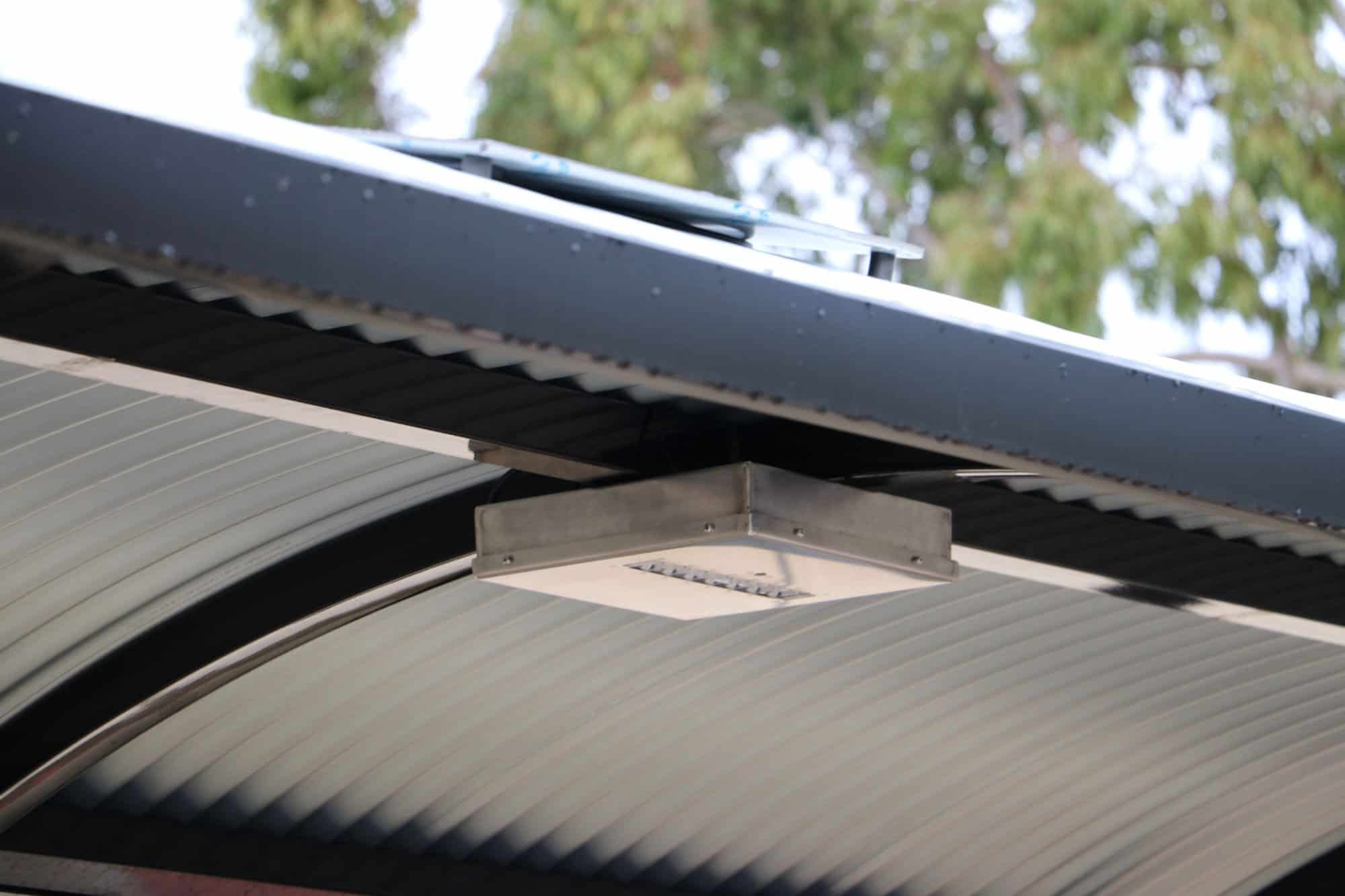

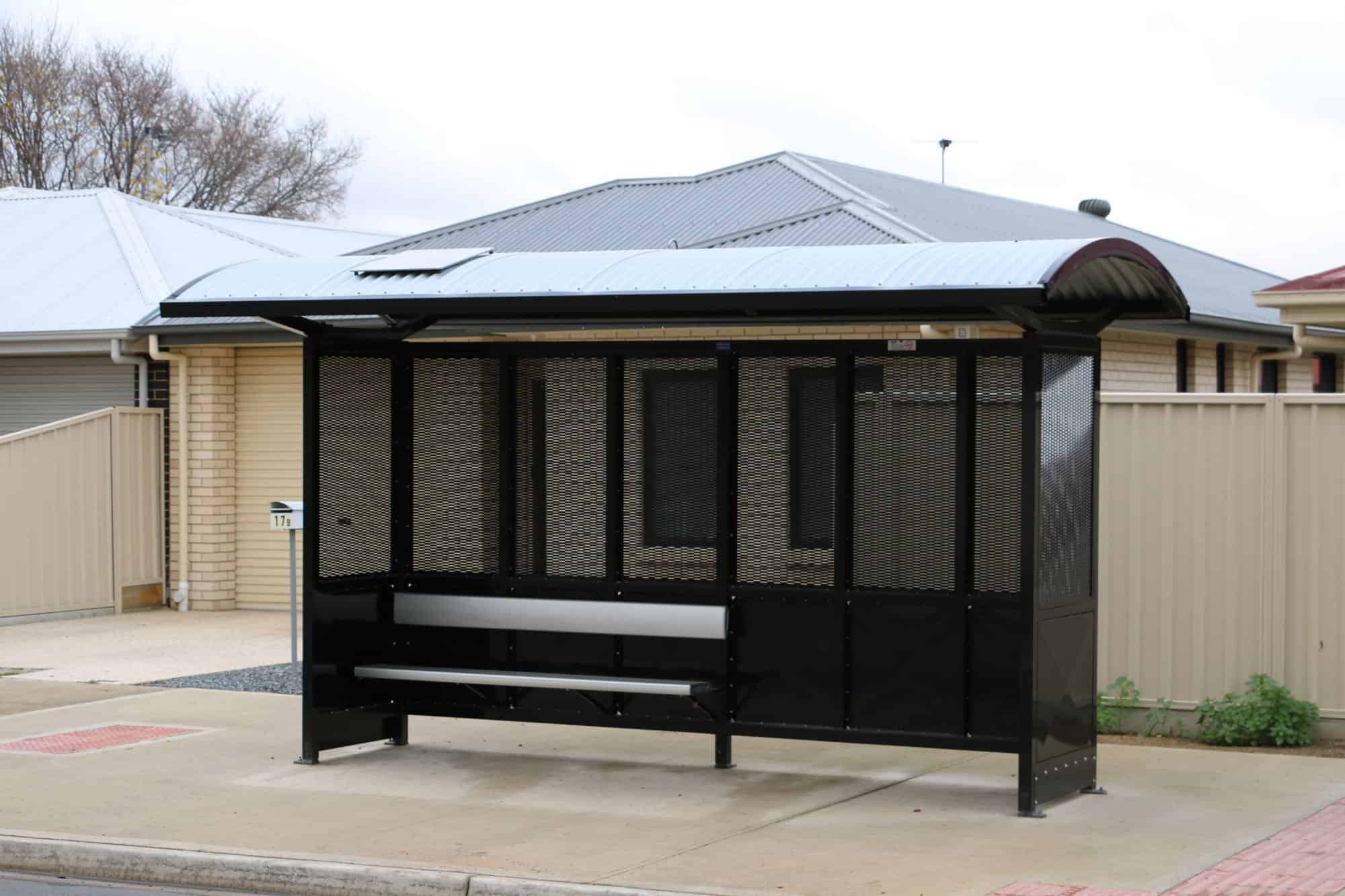

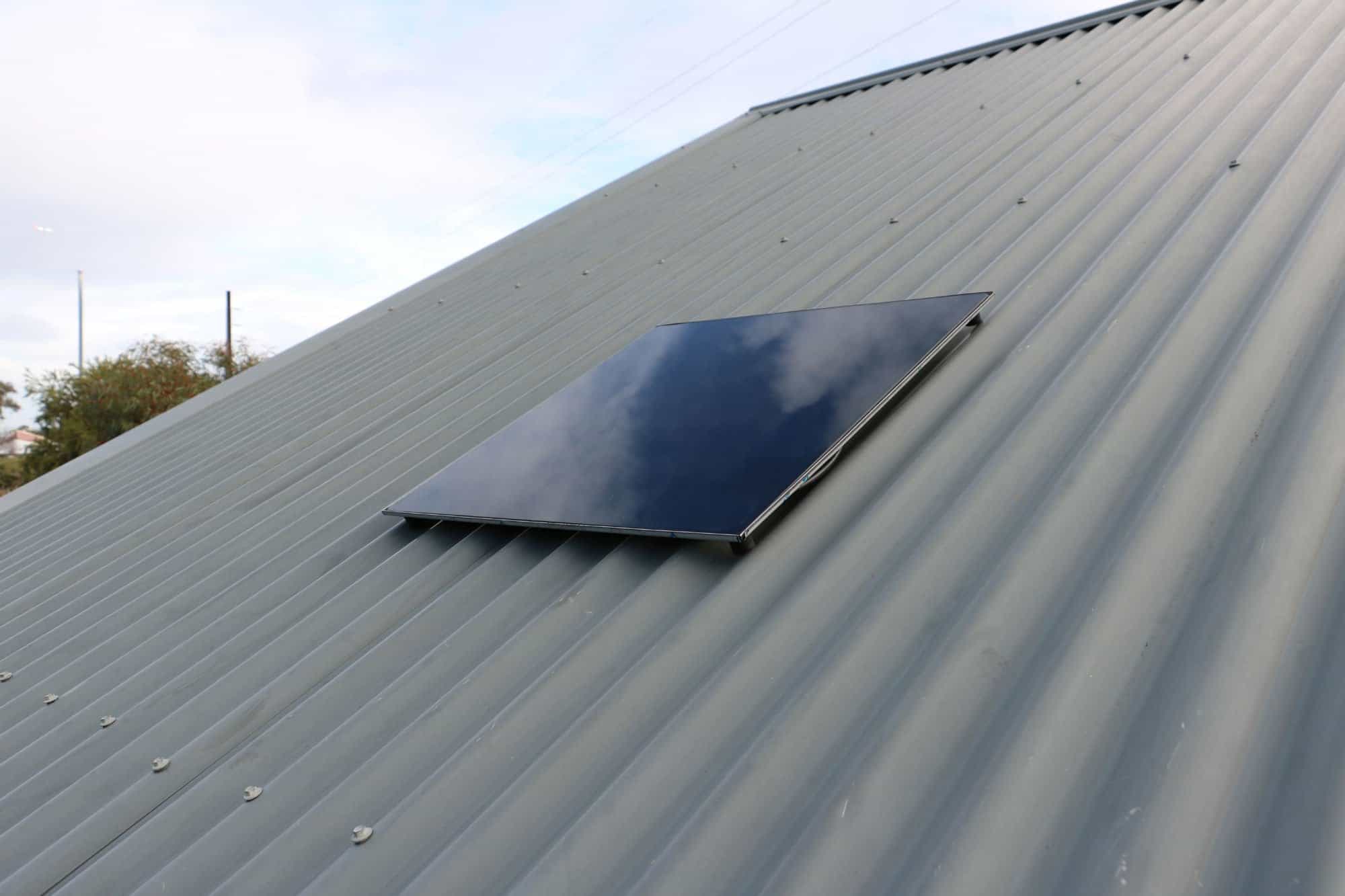

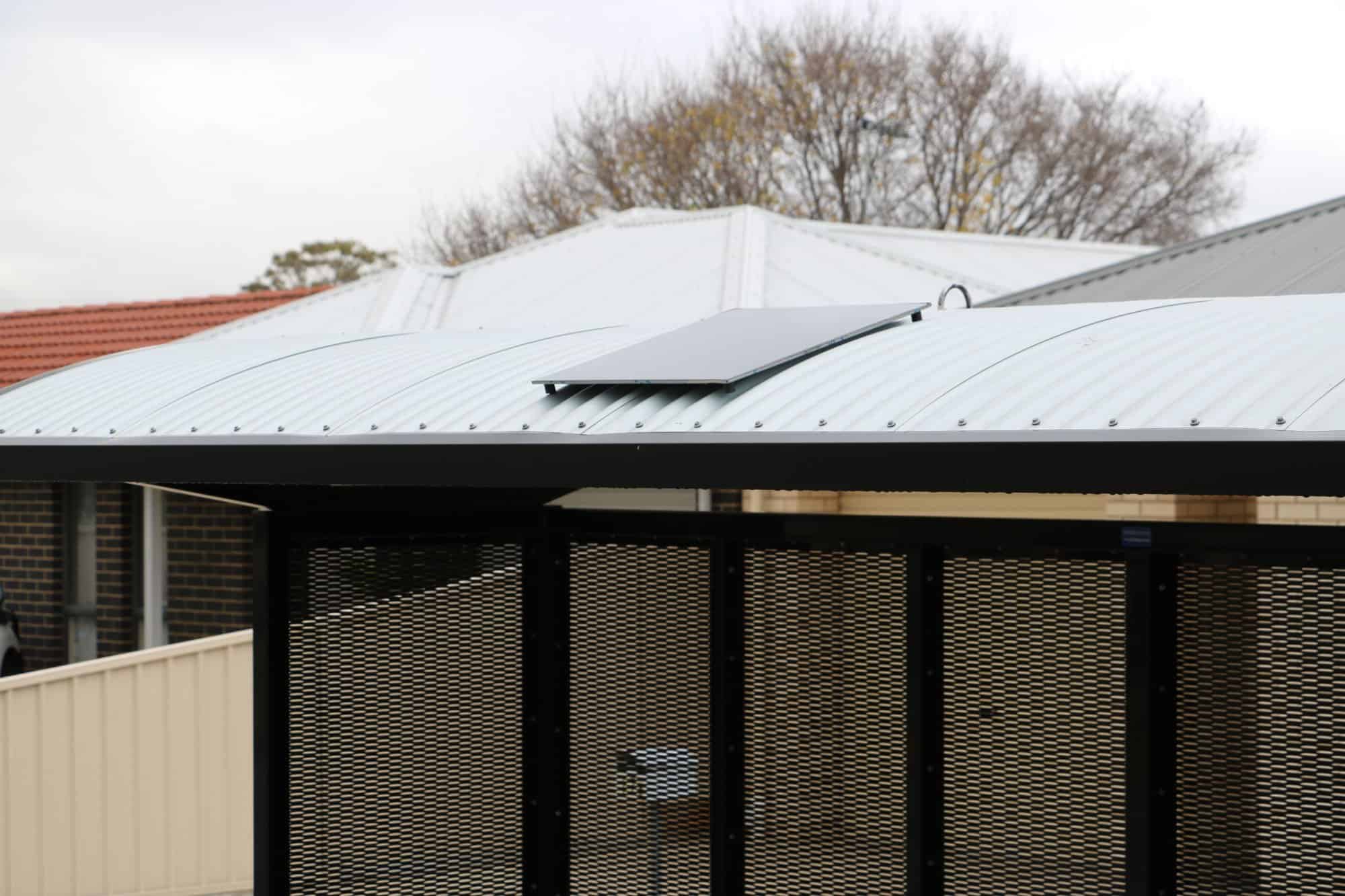

The MSL-50 is a modular, solar lighting system powered with LED lights and comes with separate panel and light components designed for canopies, shelters, and amenities without mains power. This product provides solar lighting that is engineered to endure the toughest environments, it features a 316-grade stainless steel exterior and a toughened glass lens for high vandal resistance. Its compact integrated battery ensures easy installation and provides a cost-effective lighting solution for various applications.
MSL-50 Data Sheet
View comprehensive product info in the product data sheet
MSL-50 Brouchure
View a detailed product brochure for the MSL-50
Product Demo:
Additional Info:
LED
High quality LEDs from CREE USA producing 1,402lm all-night mode which increases to 2,805lm output for 30 seconds when motion triggered. Linear or round lens options available
SOLAR PANEL
Tempered glass 50W N-mono-crystalline military grade solar panel with class leading cell efficiency (+24%). Edgeless design reduces dust and bird fouling build up. 25 Year warranty
BATTERY & CHARGING
LiFePO4 with GFS Advanced Cell Technology. Charging system measures temperature and optimises charge to increases battery life. 10 year battery warranty*
OPERATION MODES
1. Dimming Mode (DIM) (2-15W)
2. PIR Mode (PIR) (aka ‘surprise light’) (0, 15W)
3. Dual Mode (PIR DIM) PIR sensing and Dimming
(1-7.5W + 7.5W) *Default setting
SYSTEM PERFORMANCE
5 nights battery backup with proven reliability in tropical, desert, beach front and ood prone locations
CERTIFICATIONS
ISO 9001:2015 / AS/NZS 1158.3.1 Lighting for roads and public spaces – Pedestrian area (Category P) lighting P3 & P4 / AS60598 – Luminaires / IEC61347 – Lamp control gear
DIMMING OPTIONS
Adjustable dimming modes with programmable ON / OFF settings (1-14 hours) light dimming settings from 5%-100% with additional program to schedule ON time before dawn (1-4 hours)
VANDAL RESISTANCE
Fully sealed IP-65 water resistant construction with 316 Grade stainless steel exterior shell and solar panel backing plate. Flame proof tempered glass LED lens and tamper proof stainless steel fixings

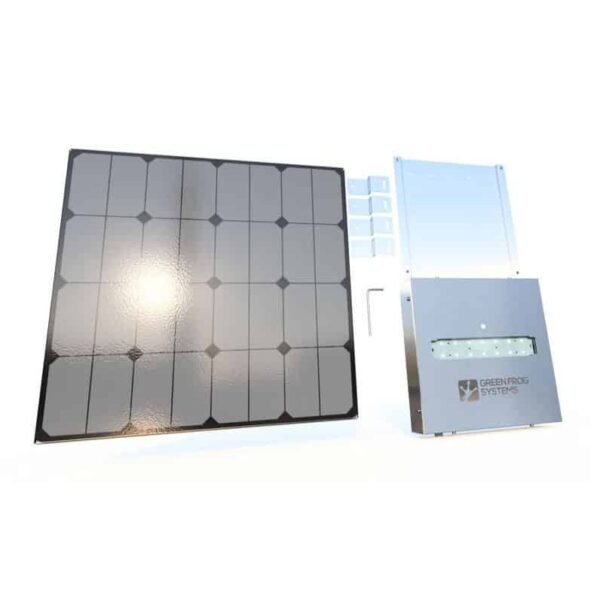

GFS-50-MSL-LS LED – Complete kit – solar panel + LED light 1W – 8W (dimmable) CREE LED Light station
GFS-50-MSL-LS-PIR LED – Complete kit + PIR – solar panel + LED light w/ PIR sensor 15W / 8W CREE LED Light station
GFS-50-MSL-SPA – Solar panel assembly only external 50W IK-10 toughened glass solar panel
GFS-50-MSL-SW – Outdoor ON / OFF Switch Rotating ON / OFF outdoor switch
GFS-50-MSL-FL – Low profile external flood light with toughened glass

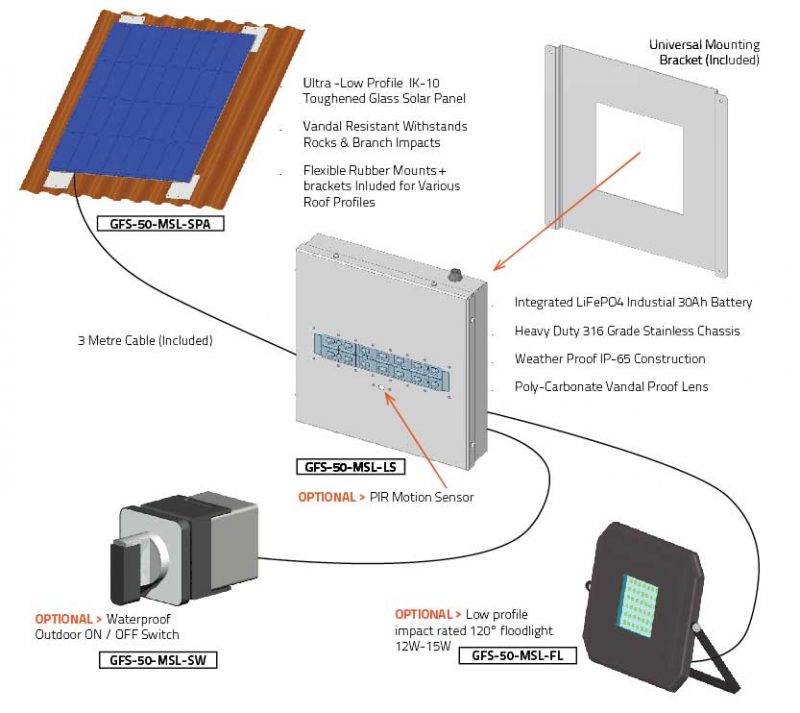

System Diagram:
